pH value is an important parameter for measuring the acidity or alkalinity of a solution, and it has been widely applied in environmental protection, water quality monitoring, food processing, pharmaceuticals, chemical and oil industries. With the increasing demand for refined control in production processes and higher environmental protection standards in various industries, the need for real-time and accurate measurement of pH value is a must for the current big data era.

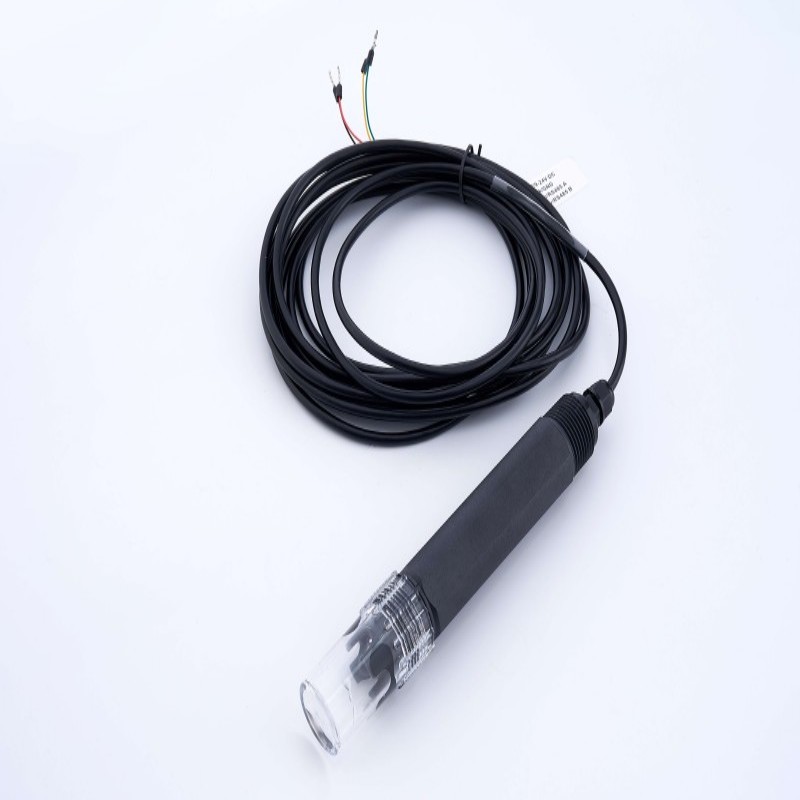

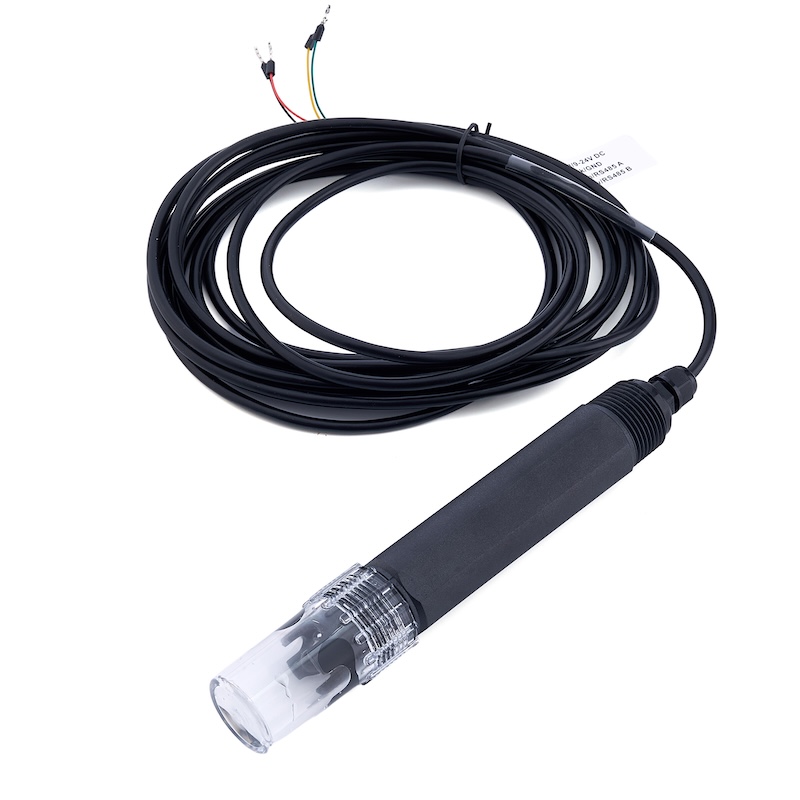

High-heat engineering plastic Polyphenylene Sulfide (PPS) housing
Annular large-area Teflon Junction ensuring long-term probe stablility
Plannar or spherical glass bulb
Excellent anti-pollution and anti-clogging capability making long service time in applications
Fast response time and can be used in low conductivity waters over pH 0 to pH 14
Working temperature up to 110℃ （230oF)
Auto temperaure compensation over 0 to 110℃ （0-230oF)
Industrial Wastewater/seawater/groundwater
Aquaculture/fish farming
Environmental monitoring
Chemical and Oil Industires
Phamaceutical Process Monitoring
Measuring range: pH 0-pH14
Response time: T90≤5 s；T95≤10s （25℃)
Temperature sensor: NTC 10K
Installation: Upper and lower 3/4 NPT threads
Output Digital: Modbus RS-485 signal
Measuring accuracy: pH±0.05pH, temperature ±0.5℃
