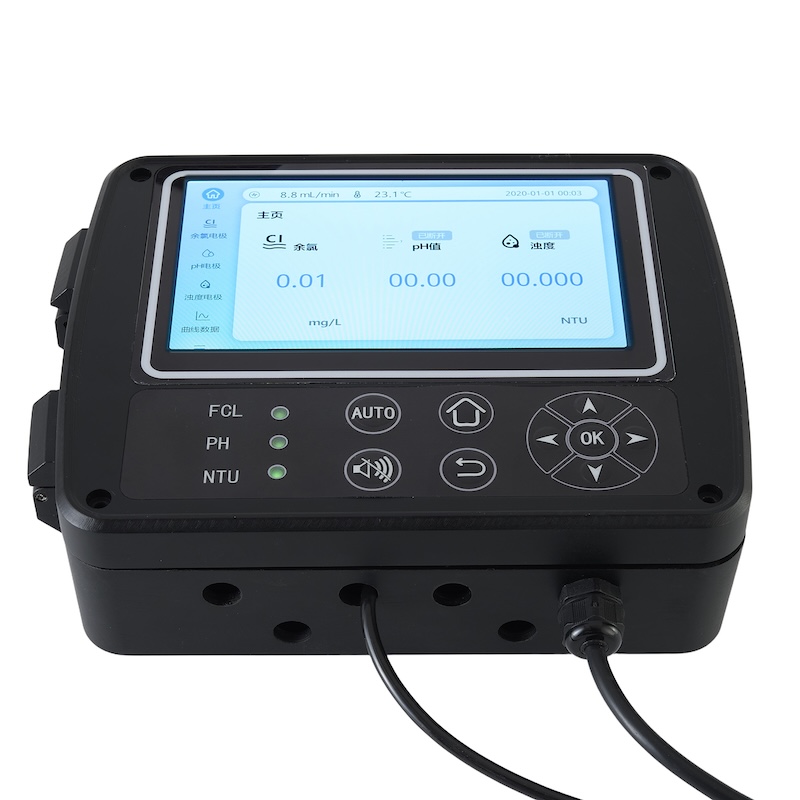

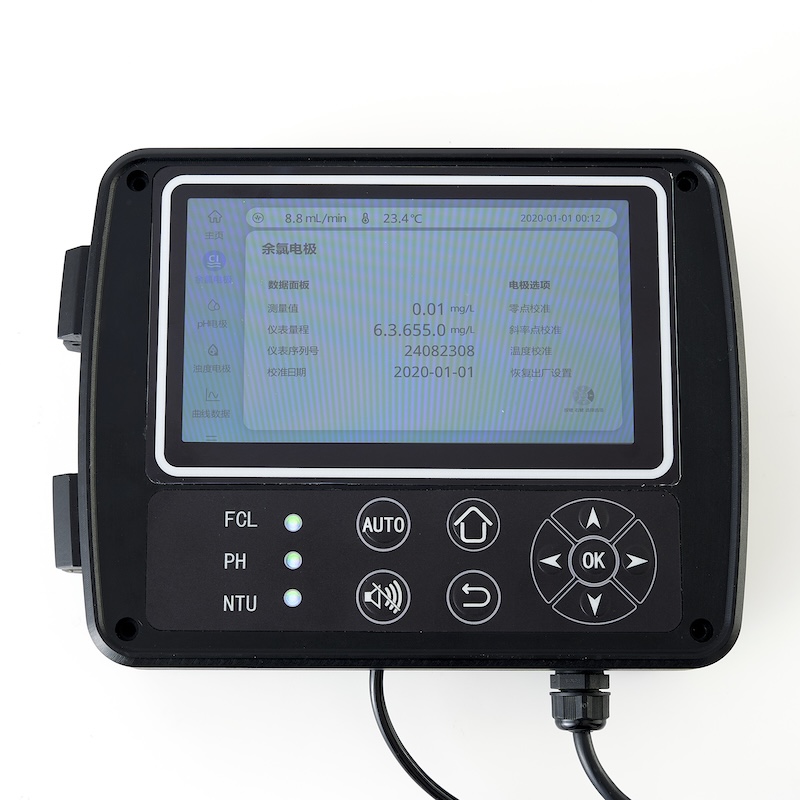

Industrial Controller

An intelligent multi-parameter water quality analysis and monitoring system, widely used in environmental protection, biochemistry, food and drinking water applications, can continuously monitor parameters such as pH, DO, turbidity, Residual Chlorine, conductivity and temperature (application parameters selectable).

Leave A Message

Features
Applications
Specifications

Programmable high resolution touch screen selectable

High measurement accuracy
Available to connect at least 6 parameters

Customizable control panel

Chemical processing

Biopharmaceuticals

Power plants water quality monitoring

Fish farming and aquaculture

Operating Voltage	AC 90-220V, 50/60Hz
Installation Method	Panel-mounted or wall-mounted
Waterproof Rating	IP65
Number of Sensors	Supports up to 4 sensors simultaneously
Language	Chinese/English (customizable)
Power Consumption	<5W
Current Output	2 channels, 4–20mA
RS485 Output	Single output, supports Modbus-RTU/JSON protocols
Relay Output	2 normally open channels (10A 250VAC); one can be configured as a timer relay
Data Storage	Stores up to 100,000 records by default (customizable)
Operating Conditions	Temperature: 0-60℃, Humidity: ≤90% RH
