Clean drinking water is essential to human health. Monitoring and conductivity at multiple stages along the drinking water production process ensures the final product is safe for consumption.
Strong anti-interference, electrical isolation design for power supply and output
Measurement range: 0.00-200.0mS (auto range, no need to select and set conductivity constant K)
Modbus-RS 485 signal output
Up to 60℃ (140°F）working temperature
Applicable in freshwater and seawater
Wide supply voltage 9-36 VDC
Industrial wastewater/PCB processing water
Aquaculture/fish farming
Ground water
Drinking water

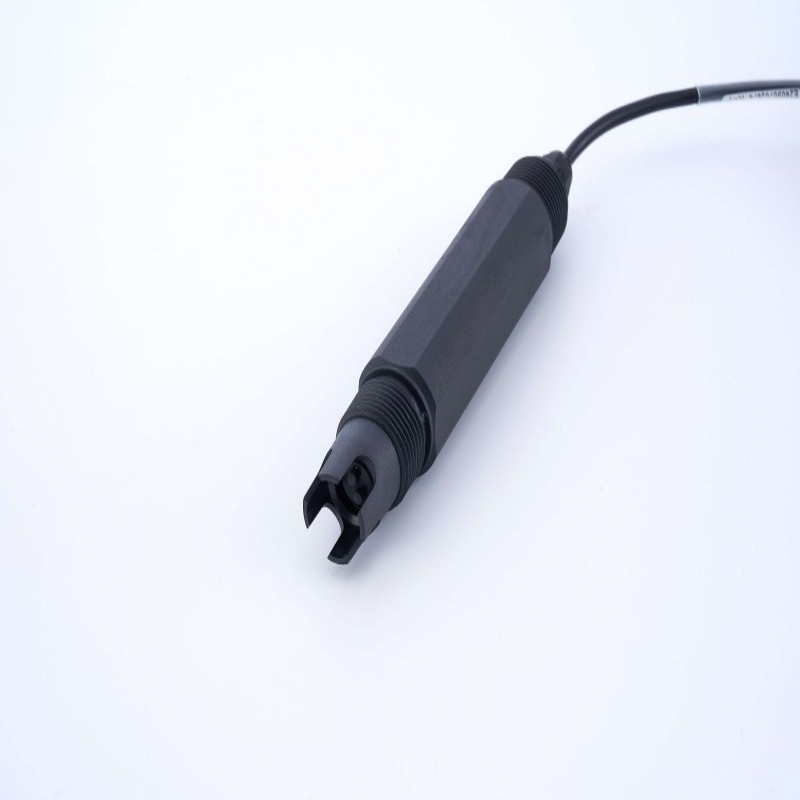

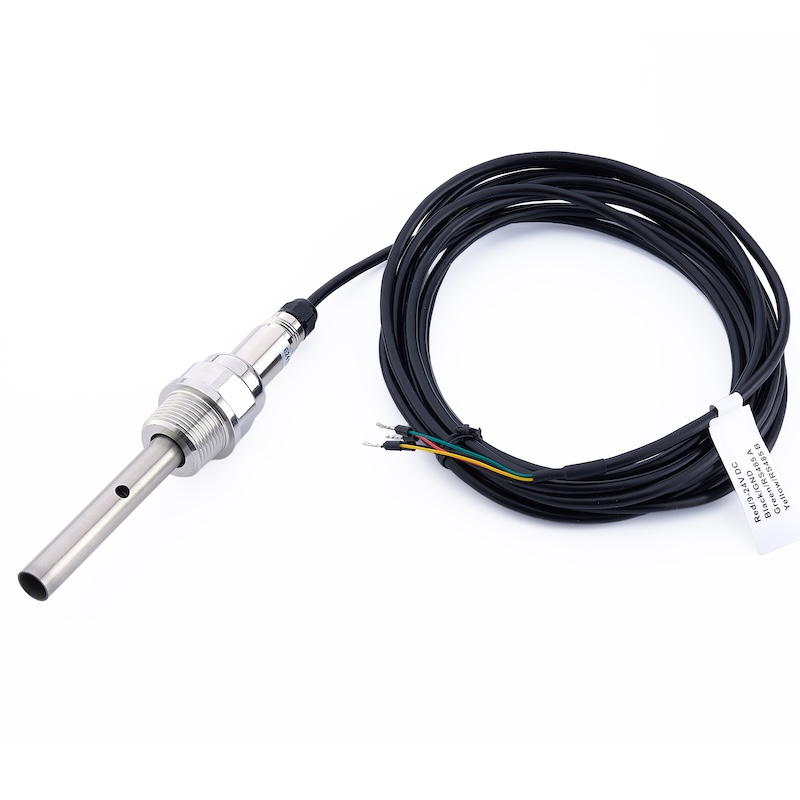

Measuring principle: two-electrode Platinum or SS316L
Measuring range: 0 to 500 mS/cm
Working temperature: 0 to 60 ℃ （0-140°F）
Temperature sensor NTC 10K
Installation: Upper 3/4 NPT thread
Digital Modbus RS-485 signal
Quick guide for industrial conductivity electrodes-2505.pdf
