Optical Dissolved Oxygen Sensors for Trace Measurement Applications

Optical Dissolved Oxygen Sensors for Trace Measurement Applications

Optical PPB trace oxygen sensor, OEM available, probe or complete instrument system integration services can be provided.

  • Features
  • Applications
  • Specifications


Integrated with ultra-high precision chips for fine detection.


IP-independent fluorescent oxygen sensor membrane technology, greatly improving sensitivity with a minimum detection limit of 0.2 ppb (0.2 µg/L).


Durable fluorescent oxygen sensor membrane life time up to two (2) years.


Suitable for water quality monitoring in power plants (non-nuclear) and metallurgical processes, including low-concentration oxygen monitoring in boiler water and circulating cooling water.

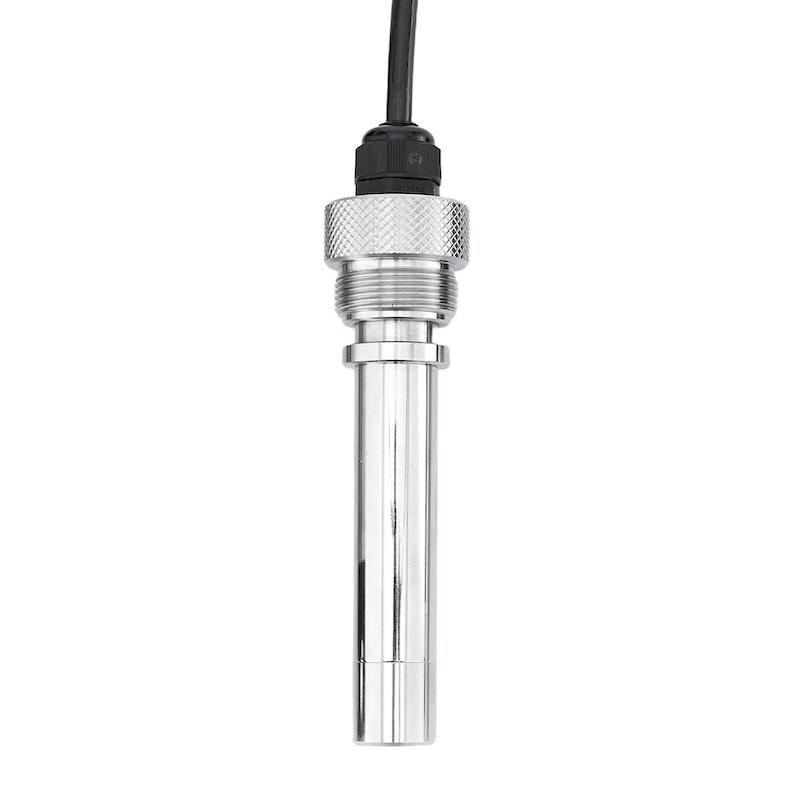

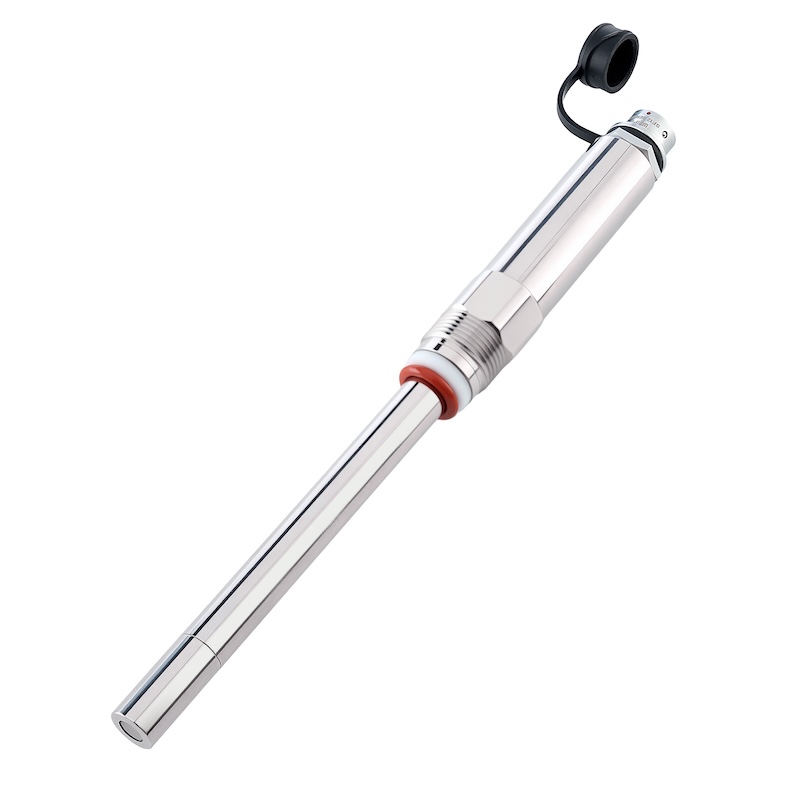

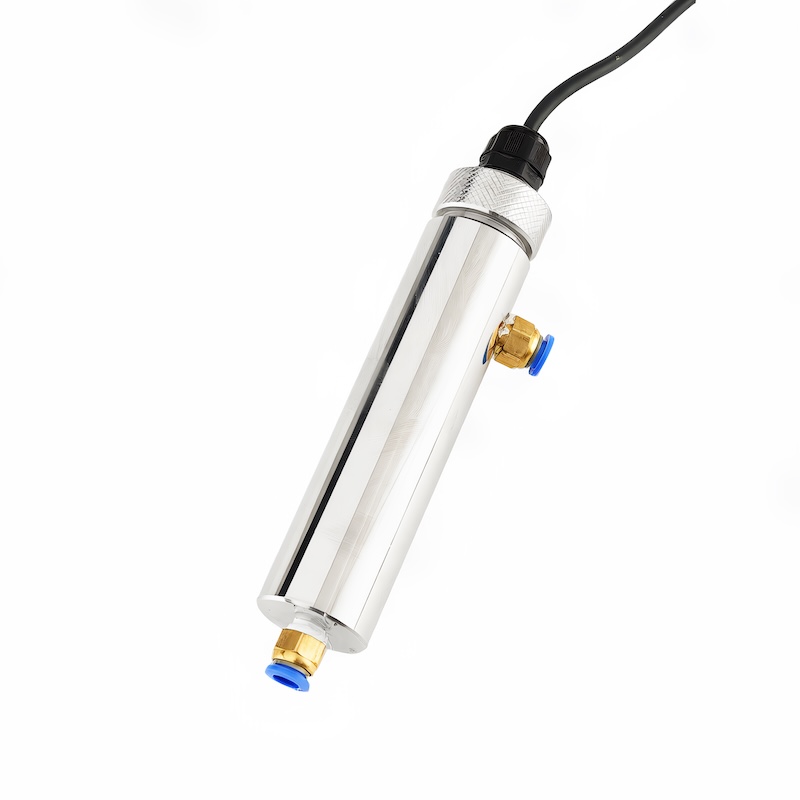

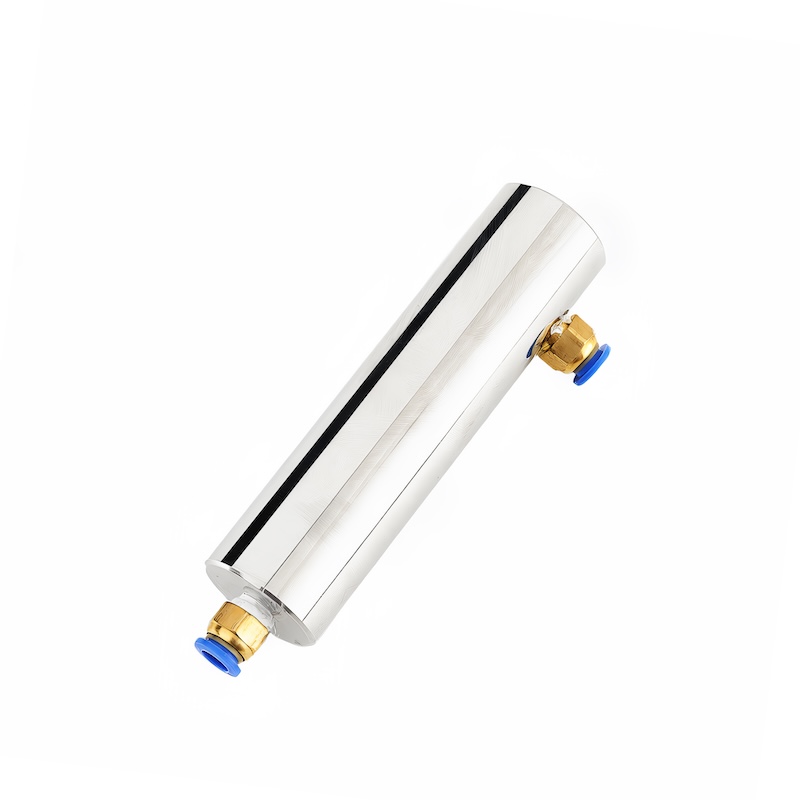

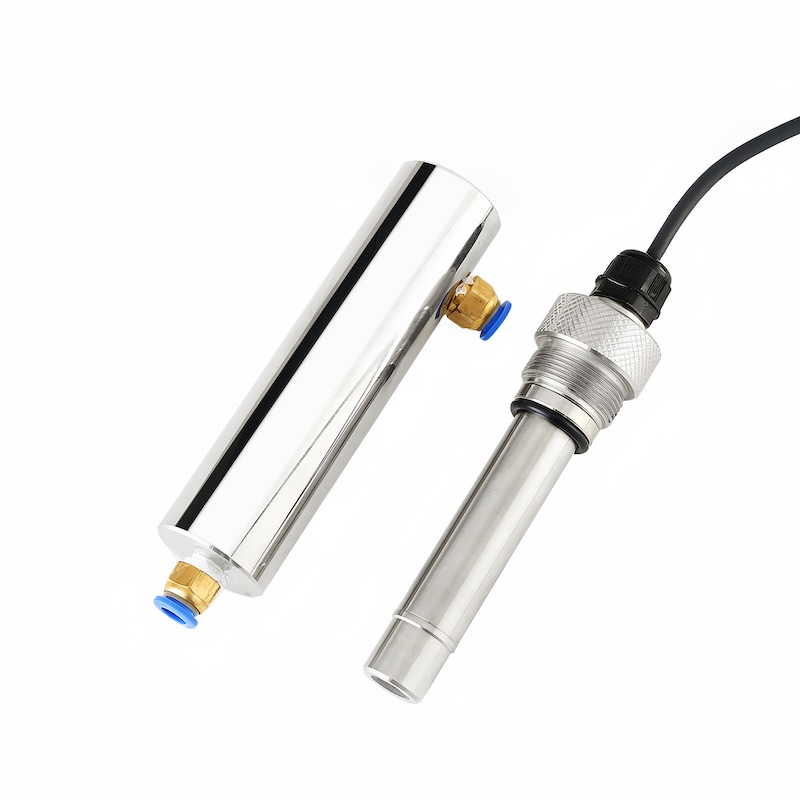

Available in two installation types: G1 thread and PG13.5 flow cell, with flow cells made of 316L stainless steel or transparent acrylic material (optional).


Power plants and other cool waters in chenical processing

Measuring range

Accuracy

DO concentration0-2000ppb (ug/L)

Temperature0-60℃

Oxygen concentration±0.2ug/L2.0%

Temperature±0.2℃

Response time

Waterproof rating

T90≤300sT95≤1000s (at 25℃)

Housting:IP68

Pressure1.0MPa

Sensor unit

Housing

SS316L+silicone rubber

SS316L

Output signal

Power supply

Modbus RS-485

4-20mA (optional)

9-36VDC

Temperature unit

Temperature compensation

NTC30K

Auto (0-60℃)

Cable length

Installation

5m default (others optional)

G1PG13.5 threads available
